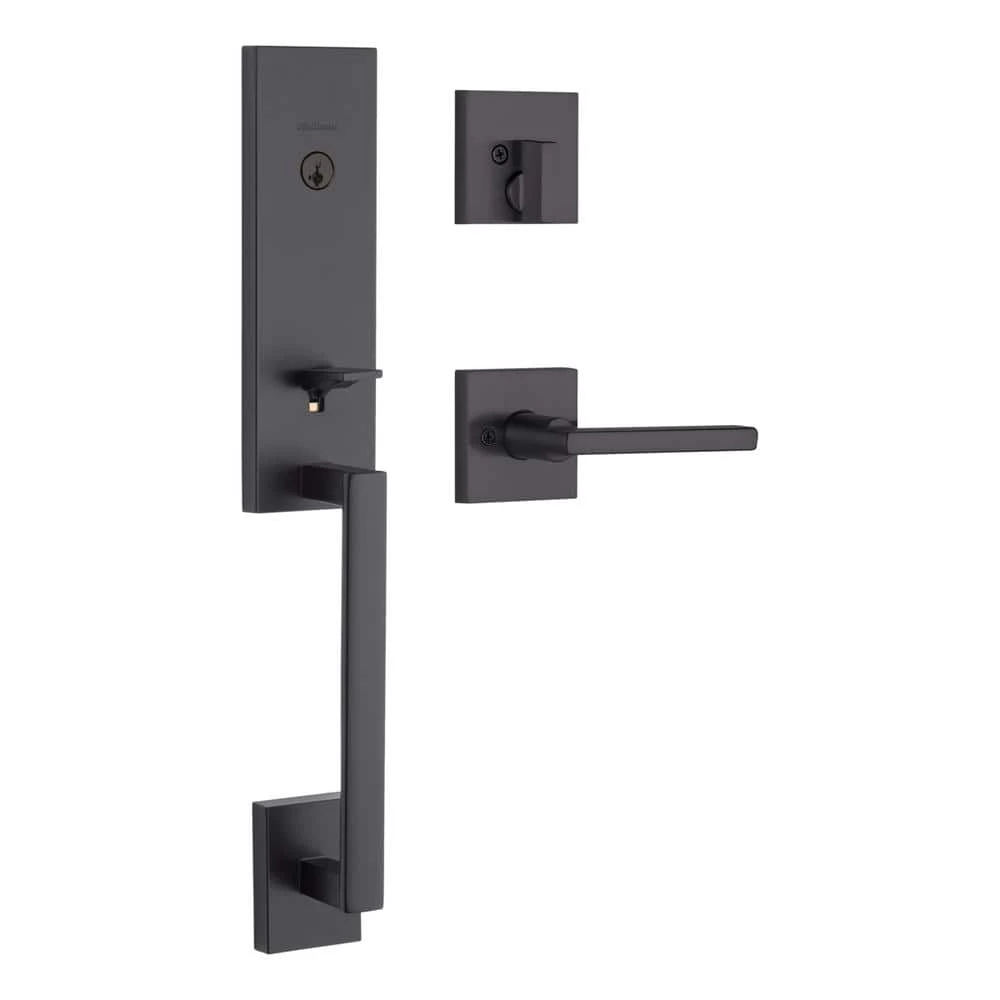

Kwikset Vancouver Matte Black Single Cylinder Low Profile Handleset with Halifax Lever Featuring SmartKey Security
Original price was: $158.64.$94.99Current price is: $94.99.
SmartKey Security allows you to re-key lock yourself in seconds
Microban Antimicrobial is 99.9% cleaner vs unprotected surfaces
Low profile contemporary design features 50% lower profile
- Made of environmentally friendly materials
- Quality You Can Trust
- Get Quality, Get More
- Online assistance, always just a message away.
Step up to designer styles and superior security with Kwikset Signature Series products. The Vancouver handleset has a clean, low profile design. With this sleek contemporary style, you make a bold statement right at the front door. This handleset offers SmartKey Security that protects against advanced break- in methods and allows you to re-key your lock in seconds. Vancouver also features an adjustable through bolt that allows for easy door mounting and a guaranteed fit. The rich tones of Matte Black add the finishing touch to this product. The Matte Black finish provides a rich and warm complement to the product’s style.
- Microban protection keeps door hardware 99.9% cleaner than unprotected surfaces
- New adjustable through bolt design, worry free installation
- Certified highest security, durability and finish – ANSI/BHMA grade AAA deadbolt
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Comes with 2 keys
- Latch has round corner faceplate
- Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
- Includes round deadbolt strike
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty

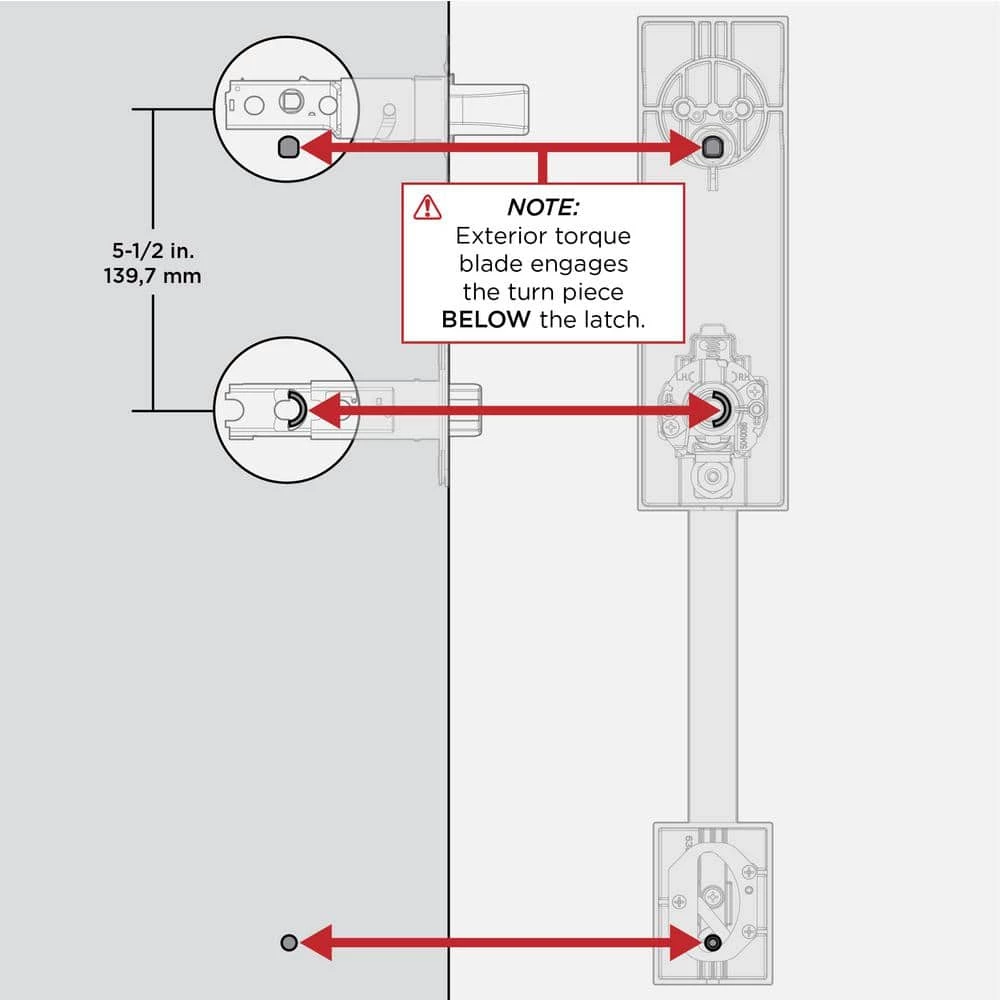

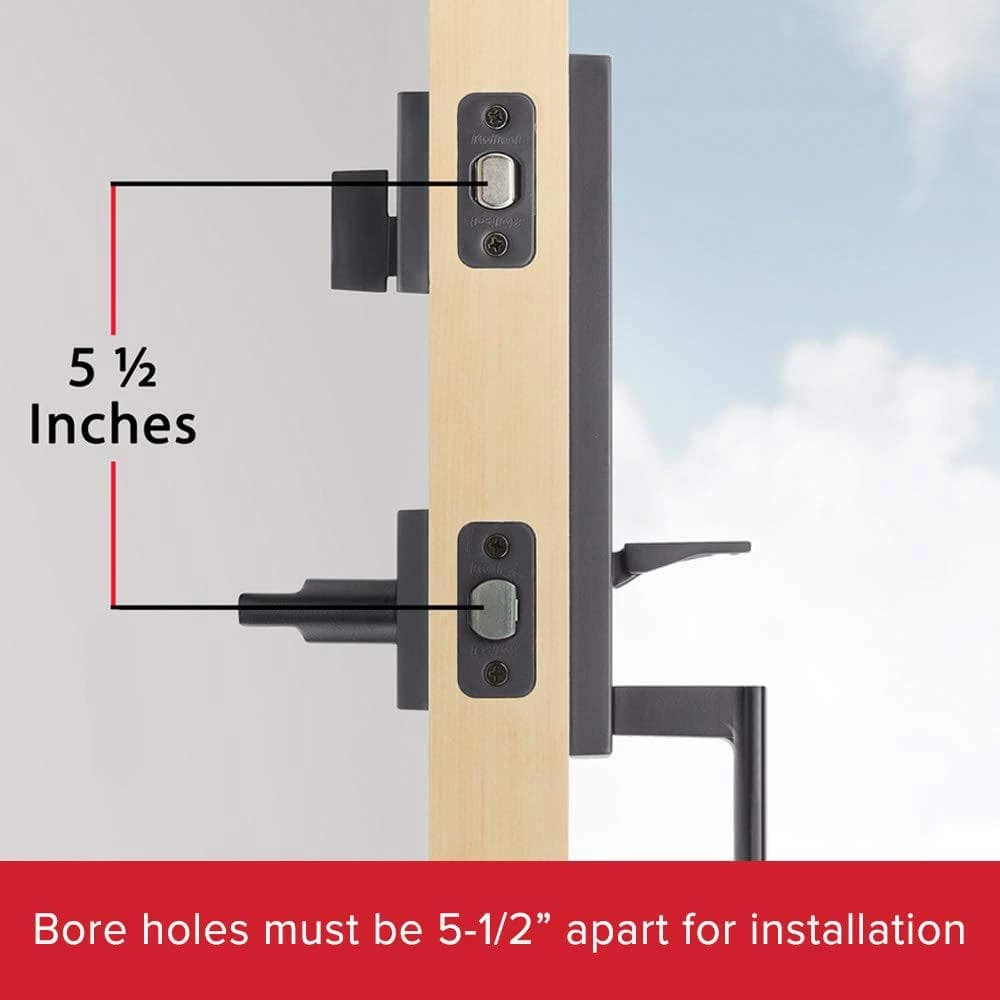

- Deadbolt bore hole and handleset bore hole must be 5-1/2 in. apart for proper installation
| Application Type | Entry |
|---|---|
| Knob/lever housing height (in.) | 2.625 |
| Deadbolt Bore Hole Diameter (in.) | 1 in |
| Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Deadbolt Strike Height (in.) | 2.75 in |
| Deadbolt Strike Width (in.) | 1.125 in |
| Deadbolt Throw Length (in.) | 1 in |
| Deadbolt Trim Ring Diameter (in.) | 2.625 in |
| Handle grip length (in.) | 4.47 |
| Inside top plate length (in.) | 2.59 |
| Inside top plate width (in.) | 2.63 |
| Knob/lever bore hole diameter (in.) | 1 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Knob/lever housing width (in.) | 2.625 |
| Assembled Width (in.) | 3.75 in |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1.75 |
| Knob/lever throw length (in.) | .5 |
| Lever Grip Length (in.) | 4.47 in |
| Maximum Door Thickness (in.) | 1.75 |
| Minimum Door Thickness (in.) | 1.75 |
| Outside bottom handle plate length (in.) | 2.66 |
| Outside bottom handle plate width (in.) | 3.75 |
| Outside handle and key plate length (in.) | 3.75 |
| Outside handle and key plate width (in.) | 3.75 |
| Outside handle plate on-center measurement (in.) | 5.5 |
| Backset Size (in.) | Adjustable |
| Assembled Height (in.) | 17.94 in |
| Commercial/Residential | Residential |
| Keying Type | Keyed Different |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Round corner |
| Door Handing | Universal |
| Door Lock Style | Modern |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Mechanical |
| Finish | Matte Black |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Black |
| Hardware Finish Family | Black |
| Included | Hardware,Installation Instructions |
| Keyway | KW1 |
| Assembled Depth (in.) | 2.66 in |
| Knob/lever strike | Round corner |
| Lever style | Straight |
| Lock Type | Keyed |
| Material | Metal |
| Product Weight (lb.) | 6.758 |
| Returnable | 90-Day |
| Security/ANSI Grade | AAA |
| Single or Double Cylinder Deadbolt | Single |
| Total Number of Keys Included | 2 |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | Lifetime mechanical and finish warranty |
| Projection (in.) | 2.66 |
